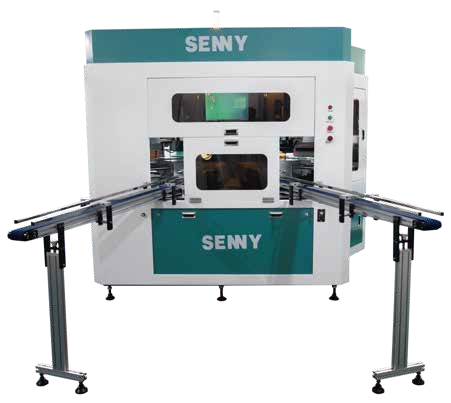

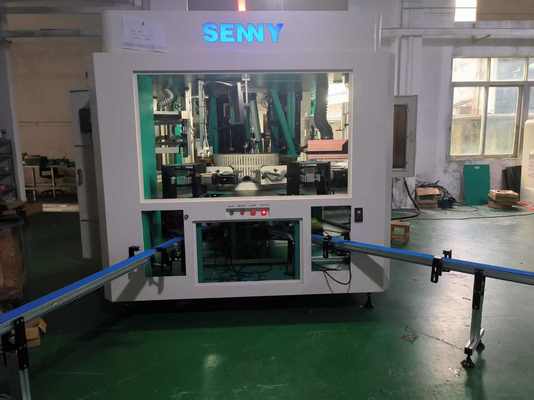

10 Work Station Bottle Screen Printer Flame Treatment Up To 55pcs/Min 360-Degree

10 Work Station Bottle Screen Printer Flame Treatment Up To 55pcs/Min 360-Degree

Machine Application:

This machine excels at 360° seamless all-around printing with 3-color UV ink, offering two key advantages: rapid drying (cures in seconds, perfect for high-speed production lines) and excellent scratch resistance (withstands daily handling and friction). It is compatible with a wide range of products, including:

Bottles: Beverage bottles (e.g., PET soda bottles), cosmetic containers (e.g., glass jars, PP bottles)
Cans: Food cans (e.g., tinplate fruit cans), aerosol cans (e.g., aluminum spray cans)
Lids: Bottle caps (e.g., plastic water bottle caps), jar lids (e.g., metal honey jar lids)
Other shapes: Round, oval, or special forms (e.g., flat-sided containers, multi-faceted boxes)
It works with multiple materials, such as plastic (PET, PP), glass (borosilicate cosmetic jars), and metal (aluminum alloy, tinplate).

Printing sample

Main Functions:

Wireless tablet control function;

Remote service management function;

Speed-adjustable conveyor belt separated feeding function;

Bottle standing manipulator feeding function;

Digital control servo motor drive 3-color 360-degree printing function;

UV curing function;

Bottle standing manipulator discharge function;

Speed-adjustable conveyor belt discharging function.

Ten workstations: 1. Visual positioning of the bottom of the feeding bottle and electrostatic dust removal; 2. Flame treatment; 3. Visual positioning of the bottle body; 4. 1st color screen printing; 5. LED-UV curing; 6. 2nd color screen printing; 7. LED-UV curing; 8. 3rd color screen printing (or hot stamping); 9. UV curing; 10. Discharging.

Technical Specifications:

Screen printing device                                                     Flame treating

What's the difference of linear screen printing machine and CNC rotary screen printing machine?

1. Linear printing machine is faster than CNC rotary machine, but printing accuracy is lower.

2. Linear printing machine is modular combination, more colors means longer floor area, CNC rotary is rotation structure which will save space.

3. CNC printing machine is equiped with remote management and service function, which will be more convenient.

4. For CNC machine, all printing functions will be finished in the same set of fixture, which will avoid product being scratched.

5. All debugging such as printing head, screen frames can be fixed through wireless tablet, but linear machine must be adjusted by hand.
