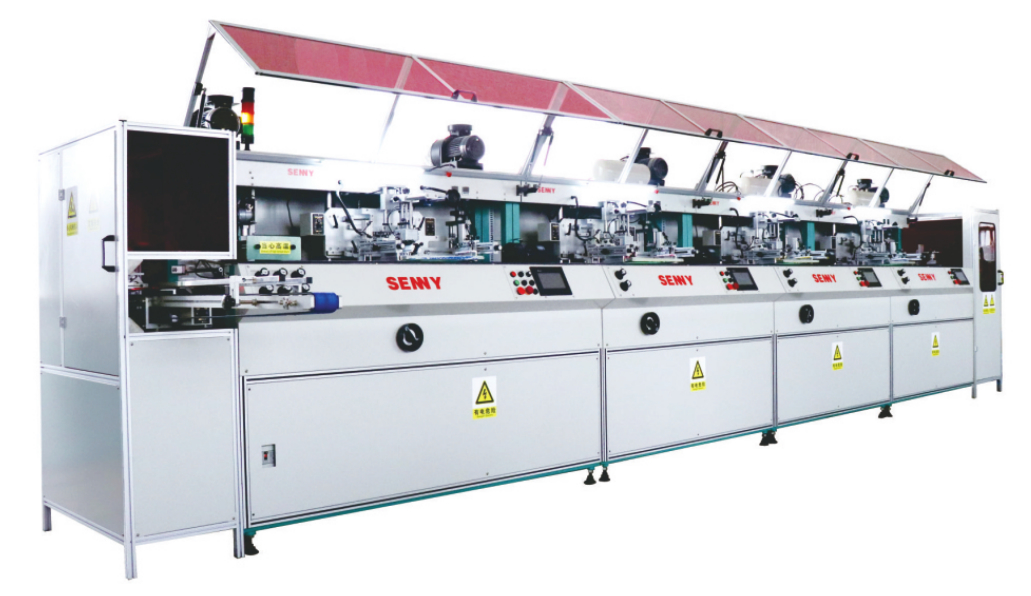

1-8 Color Fully Automatic Modular Bottle Screen Printer With IR Curing Up To 40pcs/Min

1-8 Color Fully Automatic Modular Bottle Screen Printer With IR Curing Up To 40pcs/Min

Machine Features:

• This machine is suitable for screen-printing IR inks of various colors on plastic bottles with shapes such as round, oval, and square.

• The machine adopts a digitally controlled servo motor to drive products for 360-degree printing, enabling Industry 4.0 remote management and services. This allows for real-time monitoring of equipment operation status, remote parameter adjustment, and timely troubleshooting, greatly improving production management efficiency and reducing maintenance response time.

• It is equipped with electrical components from well-known brands, along with an easy-to-use touchscreen operation and a PLC control system, ensuring reliable performance. The user-friendly interface makes operation simple even for new operators, while the stable control system guarantees consistent printing quality and minimizes operational errors.

• Featuring a highly customizable modular structure, the machine can be linearly connected to form a 1-8 color printing press. This modular design not only facilitates flexible configuration according to different production needs but also simplifies future upgrades and expansions, allowing enterprises to adjust production capacity and functions in a cost-effective manner.

• The standard configuration of the machine includes screen-printing and IR curing modules. It can also be optionally connected with independent modules such as hot stamping, labeling, and quality inspection to form a multi-functional printing press. This integration of multiple processes enables one-stop production from printing to post-processing, significantly enhancing overall production efficiency and product added value.

• After the product printing is completed, it is discharged by a manipulator, arranged in an orderly manner, and enters a constant-temperature drying tunnel furnace to fully cure the ink. This automated discharging and curing process ensures uniform ink curing, improves product stability, and avoids quality issues caused by manual handling.

Technical Specifications:

Applications

1. Core Equipment Positioning
The SLS1888-IR 5312 CNC Plastic Bottle Servo-Driven Infrared (IR) Brushing Machine is a fully automatic device dedicated to surface treatment of plastic bottles. Its core functions are designed around "precision printing + efficient curing," catering to the needs of industrial mass production.

2. Core Application Scenarios
Bottle Types & Materials: Compatible with plastic bottles/cans made of various materials such as PET, PE, PP, and PVC. It works with different shapes including round, oval, and square (e.g., feed bottles, drinking water bottles).
Printing Requirements: Supports printing with thermosetting inks of various colors, meeting diverse needs for surface decoration and marking.

3. Key Technical Advantages
Servo-Driven Printing: Equipped with a servo-driven system and CNC control, it enables easy 360° full-circumference precise printing. This eliminates deviations from manual operations and improves printing consistency.
Flexible Modular Combination: The machine adopts a modular design, with each module integrating an "independent screen printing unit + hot-air surface drying unit." It supports linear combination and splicing, allowing the construction of up to an 8-color integrated production line to expand production capacity and the number of printing colors as needed.
Automatic Curing Process: After printing, finished products are automatically transferred to the oven by the machine. With a maximum oven temperature of 120°C, the products undergo 10 minutes of automatic robotic baking, ensuring complete ink curing and enhancing adhesion and durability.

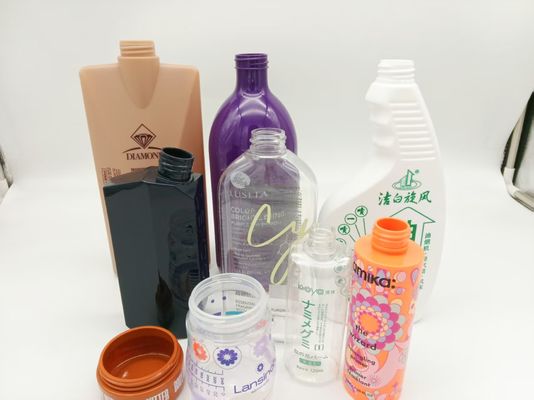

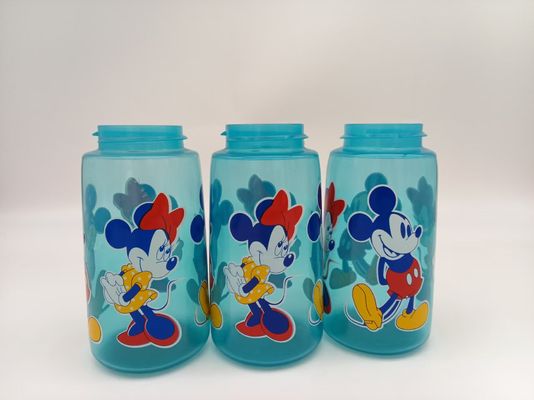

Printing sample

What are UV curing and IR curing?

UV curing---ultraviolet curing or drying

IR curing---Infrared Radiation curing or drying

Ultimately UV and Infrared Curing are two unique applications that are ideal at reducing curing times. They are both also highly energy efficient. Infrared ovens do not have special coating requirements as much as UV ovens do. However, infrared ovens may not cure as rapidly as UV
