Single Color 5000pcs/Hour Fully Automatic Screen Printing Machine 250x150mm
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | ডংগুয়ান গুয়াংডং চীন |
| পরিচিতিমুলক নাম: | SENNY |
| সাক্ষ্যদান: | CE SGS |
| মডেল নম্বার: | Srs818 |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | negotiable |
| প্যাকেজিং বিবরণ: | পাতলা পাতলা কাঠ প্যাকেজ |
| ডেলিভারি সময়: | এক মাস |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | 10 পিসি/মাস |
|
বিস্তারিত তথ্য |
পণ্যের বর্ণনা

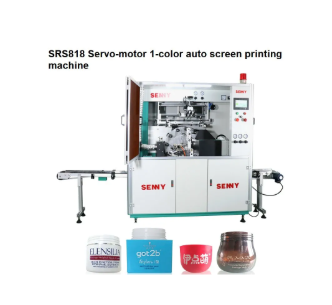

Servo Motor Controlled Fully Automatic Screen Printing Machine For Single Color Max Printing Speed Up To 5000pcs/Hr
Technical specification:
| Model | SRS818 | SRS818-S2 |
| Product diameter | Φ10 - Φ80mm | Φ10 - Φ80mm |
| Product heigth | 20 - 200mm | 20 - 200mm |
| Max. printing area | L250XW150mm | L300XW150mm |
| Max. screen frame size | L450XW300mm | L500XW300mm |
| Max. printing speed | Up to 5000pcs/hr | Up to 5000pcs/hr |
Product Features:
1. Automatic screen printing machine for plastic soft tube,round cans,and round caps,having auto feeding function,electrostatic dust removal function,flame treatment function,servo-drive registration function,auto printing &UV curing function. SRS818 saves very much labor for changing different products,shorten the adjustment time,working wold be more easier.
2. According to requirements, different kind machines can be made,like inner mode printing or clamp type printing.
3. Servo-drive with color mark pre-registration or servo-drive visual pre-registration function are options for you
4. With touch panel,it is easy to realize the man-to-machine dialogue,and it also has complete warning system
5.All servo driven screen printer with best accuracy.
6.All jigs installed with servo motors for rotation(no need gears ,easy and fast product changeover)
Feeding device:
Output device:
