1-12 Colors 6000pcs/Hr Fully Automatic Screen Printing Machine For Round Oval And Flat Containers
পণ্যের বিবরণ:
| উৎপত্তি স্থল: | চীন |
| পরিচিতিমুলক নাম: | Senny |
| সাক্ষ্যদান: | CE SGS |
| মডেল নম্বার: | SLS188-IR |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | negotiable |
| প্যাকেজিং বিবরণ: | প্লাইউড প্যাকেজ |
| ডেলিভারি সময়: | এক মাস |
| পরিশোধের শর্ত: | টি/টি, এল/সি |
| যোগানের ক্ষমতা: | 10 পিসি/মাস |
|
বিস্তারিত তথ্য |
|||
| স্টেশন: | ১-২টি স্টেশন | মুদ্রিত রঙ: | 1-12 রং |
|---|---|---|---|
| প্রিন্টিং স্থায়িত্ব: | উচ্চ স্থায়িত্ব | প্লেট টাইপ: | স্ক্রিন প্রিন্টার |
| ওয়ারেন্টি: | 1 বছর | স্বয়ংক্রিয় গ্রেড: | স্বয়ংক্রিয় |
| প্যাকেজ বিশদ: | প্লাইউড প্যাকেজ | পরিশোধের শর্ত: | টি/টি |
| সাক্ষ্যদান: | CE | ||
| বিশেষভাবে তুলে ধরা: | fully automatic screen printing machine for containers,6000pcs per hour screen printing machine,round oval flat container printing machine |
||
পণ্যের বর্ণনা

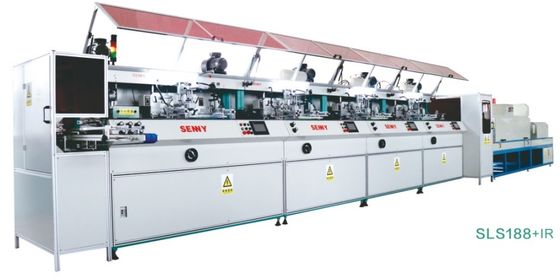

1-12 Colors 6000pcs/Hr Fully Automatic Screen Printing Machine For Round Oval And Flat Containers
SAFE EFFIENCY INNOVATIVE
-SLS1888-IR is a servo-driven automatic screen printing machine, suitable for containers made of plastic or other materials—covering those with round, oval, square, or rectangular cross-sections, centered or off-centered necks, and enabling easy changeover of printed cross-section shapes.
Efficient shape changeover: Only 30 minutes per machine to switch from cylindrical to oval or flat shapes, with 360° full-circumference printing supported.
-Linear unit structure combination: Up to 8 inline colors optional.
-The machine adopts PLC and touchscreen control for easy operation, plus an excellent warning system for clear fault prompts.
-Feeding components include: A feeding belt and a robotic arm for container side selection, ensuring orderly feeding.
-The machine’s side selector mainframe is driven by servo motors, which can rotate to perform dusting and flame treatment on round containers.
-Supports flame treatment for round, oval, and rectangular containers to enhance ink adhesion.
-Equipped with a pre-positioning device to assist in precise container feeding.
-Equipped with a secondary positioning device for printing to further ensure printing position accuracy.
-The squeegees are fitted with an electronic lifting device for flexible and quick adjustment.
-Can be connected to an IR curling system to meet the needs of normal ink printing.
-The auxiliary machine part offers optional side selection function for oval and square containers, adapting to more working conditions.
-Output parts: Include a robotic arm and a belt, enabling upright output of containers for subsequent processes.
-CE compliant, meeting international regulatory requirements.
Technical Specifications:
| Max. printing area | L300 x W250mm |
| Cylindrical container diameter | Φ20-Φ120mm |
| Square or Oval product diameter | Φ20-Φ100mm |
| Width elliptical or flat container | 20-130mm |
| Container height | 50-300mm |
| Max. printing speed | Up to 6000pcs/hr |
The SLS1888 can be configured with a plasma processing system, a labeling system, a hot stamping system or a UV-LED system, depending on the customer's specific requirements.
UV curing device Hot stamping head

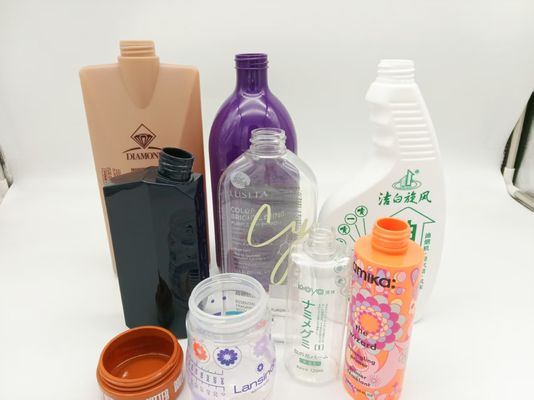

Printing samples
Workshop
